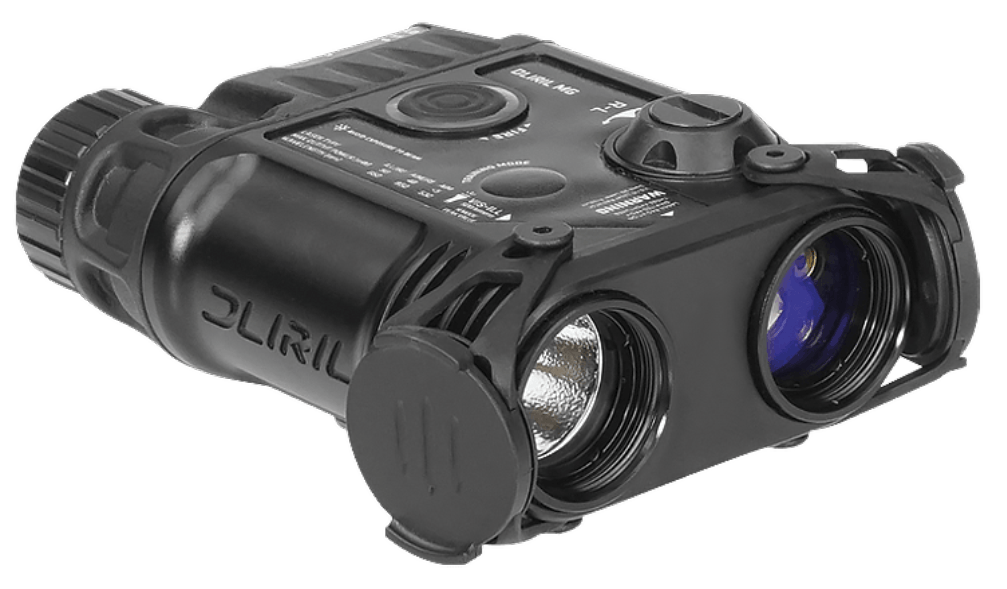

DLIRIL MR/MG – monocular laser rangefinder

DLIRIL MR combines four unique functionalities into one package: a visible red laser, an infrared (IR) laser, an infrared (IR) illuminator and a visible tactical flashlight.

The tactical flashlight has a very powerful lighting ability, its output is 500 lumens. DLIRIL MR is available with high or low power modes.

DLIRIL MR has a wide range of applications in various conditions. It can be used as a precise target indicator to assist secondary weapons in wide range operations. It provides additional IR pointer and illuminator support for night vision systems in night conditions. It can also be used as a visible laser pointer and tactical flashlight for tactical CQB shooting. Integrated weapon mount compatible with MIL-STD-1913 and STANAG 4694

It has a durable and lightweight design to handle extreme conditions with maximum performance. Tested to MIL-STD-810 and featuring a waterproof design, DLIRIL MR is durable and reliable thanks to its aluminum construction for maximum structural rigidity.

General data / Housing material

Aluminum with plastic parts

General data / Color

Black and FDE

General data / Weight

270 g (9.52 oz) (without battery) 309 g (11.64 oz) (with battery)

General data / Dimensions (WxLxH)

42 x 104 x 72 mm (1.65 x 4.09 x 2.83 in)

General data / Machine support compatibility

MIL-STD 1913, STANAG 4694

General data / Wind and height adjustment

Yes

General Data / On/Off Switch

40 hours

General data / Dimensions, weight

Rotary switch / built-in buttons

General data / Battery

1 X 18500 Li-ion battery

Battery Life/Visible Laser Pointer

15+ hours

Battery Life / IR Laser Designator

60+ (low), 15+ (high) hours

Battery Life / IR Laser Illuminator

50+ (low), 12+ (high) hours

Battery Life/Visible Illuminator

1+ (high), 2.5+ (mid), 10+ (low) hours

Visible laser pointer / Power output

< 5 mW

Visible Laser Pointer/Class

Class FOR

Visible Laser Pointer / Beam Divergence

0.5 mrad

Visible Laser Pointer/Wavelength

635 nm

IR laser pointer / Max. Output Power High

40 mW

IR Laser Pointer / Low Power Output

<= 5 mW

IR Laser Pointer / Beam Divergence

0.5 mRad

IR Laser Pointer/Wavelength

850 nm

IR Laser Pointer/Class

Class 3B

IR Laser Illuminator / Low Output Power

50 mW

IR Laser Illuminator / Low Power Output

<=10 mW

IR laser illuminator / Beam divergence

1OO mrad

IR Laser Illuminator/Wavelength

850 nm

IR laser illuminator / Class

Class 3B

Visible Illuminator / Highest Illumination Value

500 lumens

Visible Illuminator / Maximum Average Illumination Value

225 lumens

Visible Illuminator / Lowest Illumination Value

60 lumens

Visible Illuminator / Type

LED

Environmental Data/Operating Temperature Range

From -32°C to +49°C (from -26°F to +120°F)

Environmental Data/Storage Temperature Range

From -4О°С to +71°С (from -4О°F to +160°F)

Environmental Data/Dive

Immersion up to 10 m

Advanced Features / Remote Control Cable Clamp

Yes

Advanced Features/Learning Mode

Yes

Advanced Features / Vibration and Power Off Warning

Yes

Advanced Features / Adjustable Visible Illuminator

Yes (low, medium, high)

Standard accessories / Soft carrying bag

Yes

Standard components / Lithium-ion battery 3.7V 185OO

Yes

Standard Accessories / Remote Control Cable Clamp

Yes

Standard Accessories / Charger Kit

Yes

Standard Parts / User and Operation Manual

Yes
