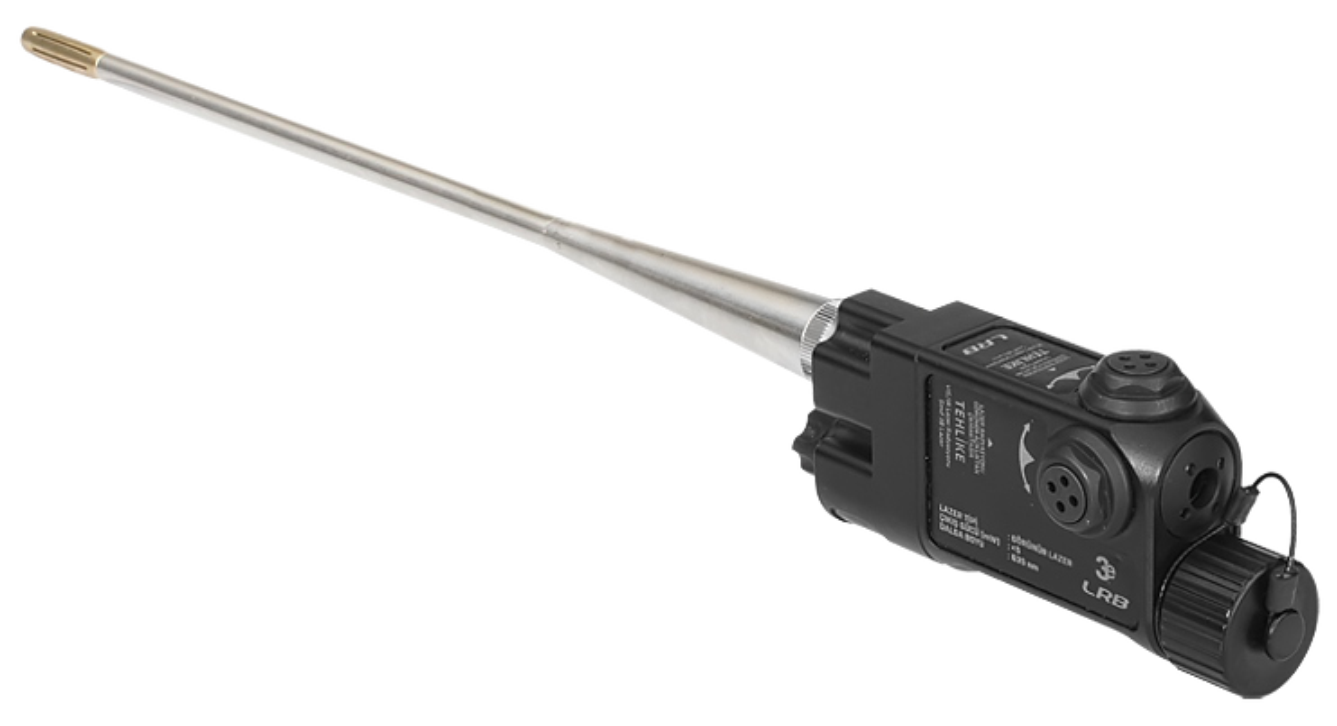

LRB – laser sight for direct fire

To prevent the use of additional ammunition, the LR13 provides accurate and error-free direct fire sighting in the field without firing a shot.

The LRB kit includes bearing bushings for the following calibers:

5.56 mm, 7.62 mm, 8.59 mm and 12.7 mm.

To ensure accurate and error-free sighting, it uses sight adjustment for windage and elevation.

To withstand extreme conditions with maximum performance, it has a durable and lightweight design. Tested to MIL-STD-810 and featuring a waterproof design, the LRB is durable and reliable thanks to its all-aluminum construction for maximum structural rigidity.

Physical data / Housing material

Aviation aluminum

Physical data / Color

Black

Physical data / Weight (without battery)

85 g (3 oz)

Physical data / Size (WxLxH)

24 x 84 x 41 mm (O.94 x 3.5O x 1.61 in)

Laser Data/Wavelength

635 nm

Laser Data/Output Power (Low)

<1 mW (Class II) (NV mode)

Laser Data/Output Power (High)

<5 mW (Class ZA)

Laser Data / Vertical. and horizon regulation of sighting

Yes

Laser Data/Battery

1xAA (1.5 V)

Laser Data/Battery Life (Low Mode)

25 hours

Laser Data/Battery Life (High Mode)

10 o'clock

Improved Features/Training Mode

Yes

Improved Performance / Vibration Warning in Off Mode

Yes

Enhanced Features / Eye Protection Sensor

Yes

Environmental Data/Operating Temperature Range

From -32°С to +49°С (from -26°F to +12О°F)

Environmental Data/Storage Temperature Range

From -4О°С to +71°С (from -4О°F to -16O°F)

Environmental Data/Dive

IP67

Environmental Data / Available Bearing Bushings

5.56 mm MAT0 (O.223 cal), 7.62 mm MATO (0.308 cal), 8.59 mm (0.338 cal), 12.7 mm NATO (O.50 cal)

Standard Accessories / Barrel Tube, Long

Yes

Standard Accessories / Soft Carrying Bag

Yes

Standard components / Barrel tube, short

Yes

Standard Components / 2 X AA Battery

Yes

Standard components / Bearing bushings 5.56

Yes

Standard Accessories / Mounting Bolt

Yes

Standard components / Bearing bushes 7.62

Yes

Standard Accessories / Sight Adjustment Key

Yes

Standard components / Bearing bushings 8.59

Yes

Standard Parts / User and Operation Manual

Yes

Standard components / Bearing bushings 12.7

Yes

Standard components / Cable for a distance of 10 m

Yes
