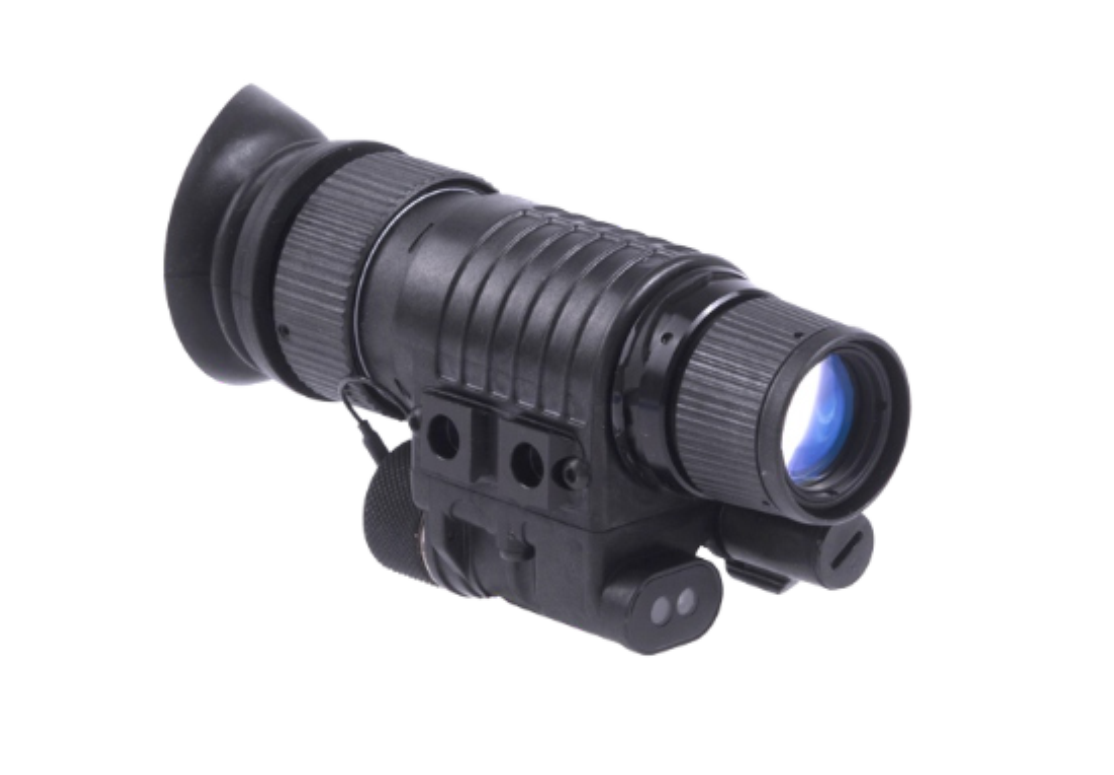

MEPRO MINIMON L – multifunctional mini-monocular

MEPRO MINIMON (L) fully meets the requirements for night vision in combat and field conditions and provides high performance with a single image intensifier.

The monocular is one of the lightest night vision monoculars. The device is compatible with daytime collimator or holographic sights. It is installed on the weapon next to the IR laser devices for aiming and illumination. It is also used with SLR cameras and video cameras.

The monocular is equipped with a built-in LED infrared illuminator. The device is used as a hand-held device, with the ability to be mounted on a helmet or head. Zoom 3X, 4X, 5X (optional). Complies with MIL-STD 810 standard.

*Specifications are subject to change

Optical characteristics / Magnification

X1

Optical characteristics / lens aperture

1.2

Optical characteristics / Field of view angle

40°

Optical characteristics / Eyepiece dioptre adjustment

from (+4) to (-6)

Optical characteristics / Eye relief

15 mm

Optical characteristics / Infrared illumination range

~ 3 m

Optical characteristics / Focus range

from 15 cm about infinity

Optical characteristics / Electron-optical converter (IEC)

18 mm generation II+ or III

Optical characteristics / Power supply

1X CR123 (optional 1X AA)

Optical characteristics / Lifetime

40 hours (lithium)

Dimensions, weight / Weight (without picatinny adapter and battery)

270 g

Dimensions, weight / Dimensions (LxWxH)

120x43x66 mm

Dimensions, weight / Accessories

Head mount assembly, battery; anti-fog cover, protective window and operating instructions.
