OCU – operator control unit

AUXILIARY PRODUCT

Only works with compatible 3E device.

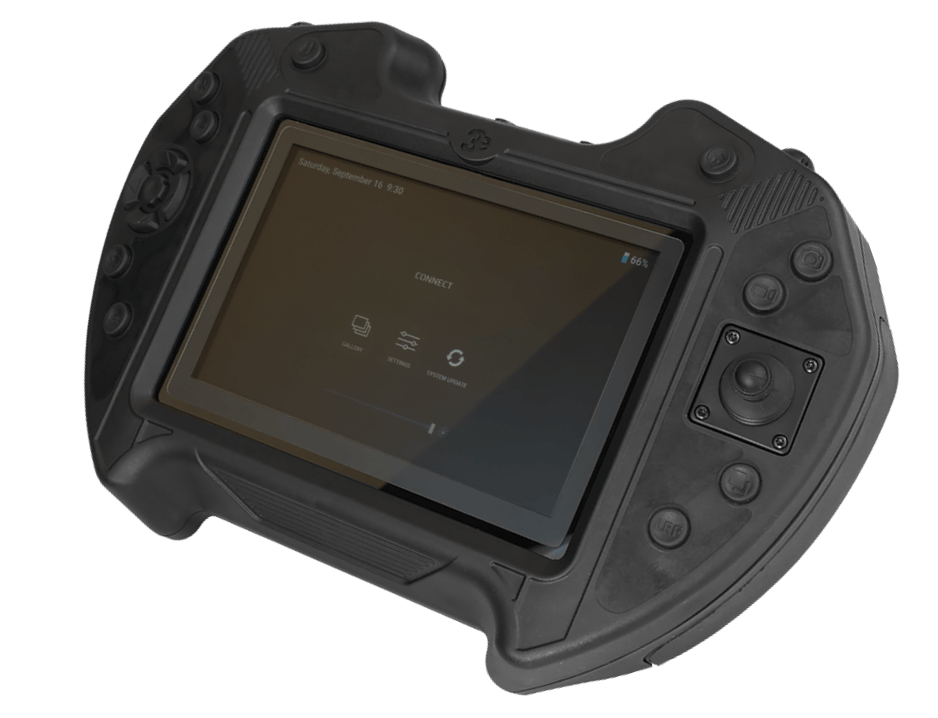

OCU is designed to maximize the TUFAN user experience with a built-in 7.0-inch touchscreen that displays crisp, bright images even in challenging environments. Easy-to-use controls and seamless connection with TUFAN provide the ultimate user experience like never before.

It can be powered by either an internal battery or external power and is designed to meet the ergonomic requirements of advanced users for maximum trouble-free operation.

Improve your usability and get the most out of your device.

Physical data / Size (WxLxH)

300x205x75 mm (11.81×8.07×295 in)
Physical data / Weight

1615 gr (56.97 oz)
Physical data / Housing material

Plastic parts and aluminum
Physical data / Color

Black
General characteristics / Normal power

I'M IN
General characteristics / Memory

64 GB
General characteristics / RAM

2 GB
General Features / Ethernet Support

Yes (100Mbps)
General Features / Video Out Port 1

HDMI Port
General Features / Video Out Port 2

Analog video output
Electronic Data/Internal Battery

Rechargeable lithium 4 x 18650 (3500mAh) battery
Electronic Data/Internal Battery Life

5+ hours
Electronic data/Adapter input/external

13V/2A (min) 19V/2A (max)
Electronic data/Battery input/external

14.8 V (nominal) 16.8 V (max)
Display data/Display

Built-in 7" LCD
Display Data / Second Display Support

7" LSD
Display Data/Resolution

1280×768
Bluetooth/Protocol

Bluetooth 4.2
Bluetooth / Operating frequency range

2.4 Hz
WI-FI/Protocol

Support IEEE Std 802.11a/b/g/n SISO 20 and 40 MHz 20 MHz 2×2 MIMO
WI-FI / Operating frequency range

2.4 Hz, 5 Hz
Product environmental data / Operating temperature range

from -32°С to +49°C (from -26°F to +120°F)
Product environmental data / Storage temperature range

from -40°С to +71°С (from -40°F to +160°F)
