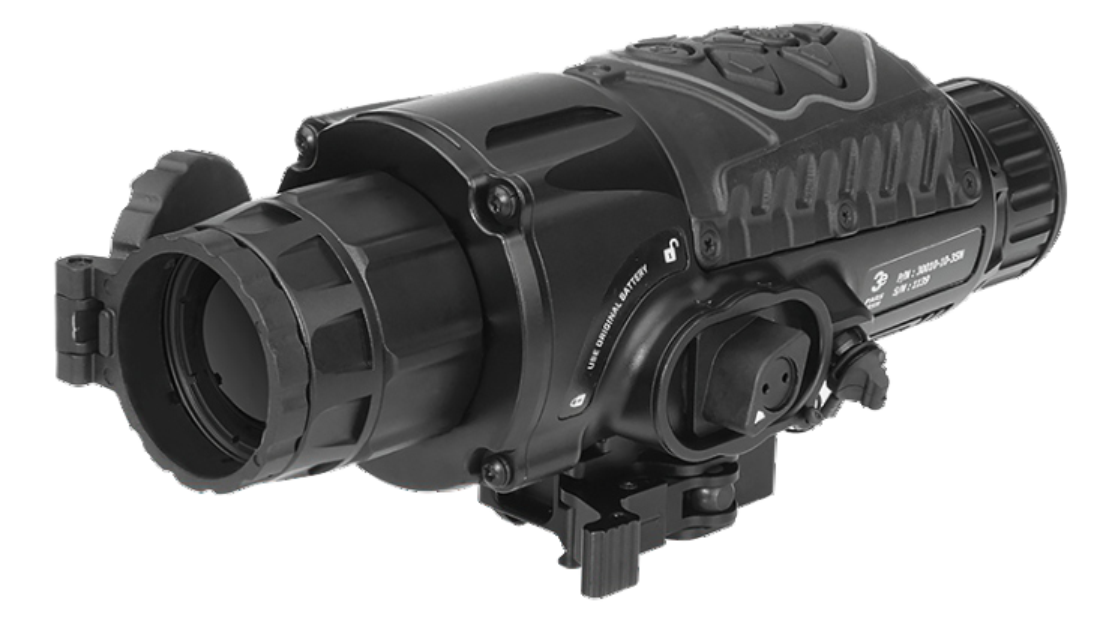

PARS 635N – thermal imaging sight for weapons

The PARS 635N is the premier thermal weapon sight, delivering world-leading image processing performance. It delivers unrivaled optical performance with 17-micron LWIR technology and a 640×480 thermal sensor.

Additionally, advanced image processing provides superior image clarity and better detection and recognition, allowing you to conquer the night with exceptional image quality.

The durable, lightweight design allows it to withstand extreme conditions with maximum performance, so elite operators can count on it. Tested to MIL-STD-810 and featuring a waterproof design, the PARS 635N is durable and reliable in harsh environments thanks to its all-aluminum construction for maximum structural rigidity.

PARS 635N provides the most efficient and convenient user experience thanks to its user-friendly interface. It includes many advanced features such as wireless video transmission to various platforms, wireless remote control, picture-in-picture (PiP) mode, internal video and image recording.

PARS 635N can be quickly installed on any MILSTD-1913 rail interface

General Data/Frame Rate

60 Hz

General data / Display type

Color OLED

General data / Distance between eyes

30 mm

General data / Electronic zoom

2x, 3x, 4x, 8x (PiP mode)

General data / Start time

<5 sec.

General data / Calibration

Automatic, semi-automatic, manual

Optical Data/Lens (MF)

35 mm

Optical Data/Field of View (HxV)

17.7° x 13.3°

Optical data / Min. Focus distance

3m

Optical data/DRI

Person Detection – 1020m / 1115 yards Vehicle Detection – 3160m / 3455 yards

Optical data / Dioptres

+2.-6 diopters

Sensor data/Sensor technology

uncooled microbolometer

Sensor Data/Sensor Resolution

640 x 480 pixels

Sensor Data / Sensor Sensitivity

< 40 mK @f/1.0

Sensor Data/Sensor Interval

17 µm

Sensor Data/Spectral Range

LWIR; from 7.5 µm to 13.5 µm

Physical data / Weight

616 g (21.7 oz) (without battery) 807 g (28.4 oz) (with accessories)

Physical data / Dimensions (WxLxD)

90x207x93 mm (3.54×8.14×3.66 in)

Physical data / Housing material

aluminum/plastic parts

Physical data / Color

Black or FDE

Physical data / Type of weapon mount

Quick release mount

Physical Data / Quick Release Mount

MIL-STD 1913, STANAG 4694

Electronic Data/Battery

2×18650 Rechargeable Li-ion

Electronic data / Battery life

4+ hours

Environmental Data/Operating Temperature Range

From -32°C to +49°C (from -26°F to +120°F)

Environmental Data/Storage Temperature Range

From -40°С to +71°С (C -40°F to +160°F)

Environmental Data/Dive

IP67

Environmental Data/Recoil Compatibility

5.56 mm NATO (0.223 cal) 7.62 mm NATO (0.308 cal)

Advanced Features / Built-in WI-FI

Yes (wireless video streaming from AppStore, Google Play, Windows)

Advanced Features / Built-in Bluetooth

Yes

Advanced Features / Motion Detection

Yes

Advanced Features / Video Recording

Yes (Format: MP4. Capacity: 180+ minutes)

Advanced Features / Image Capture

Yes (Format: JPEG. Capacity: 10000+ photos)

Advanced Features / Eye Comfort Mode

Yes

Advanced Features / Dual Axis Angle Indicator

Yes

Advanced Features / Stadiametric Rangefinder

Yes

Advanced Features / Continuous E-Zoom

+0.05x (1.00, 1.05, 1.10…)

Advanced Features / Grid

Multiplex Retichle Patterns

Advanced Features / Grid Color

Multiple grid colors, Auto POL, AutoBG

Advanced Features / Grid Brightness Adjustment

Yes

Advanced Features / FP Mesh

FFP, SFP

Advanced Features / Stages on the Reticle

Yes

Advanced Features / Reticle Reset

Manual, automatic

Advanced Features / User Profiles

Up to 10 profiles

Advanced Features / Brightness Adjustment

Yes

Advanced Features / Contrast Adjustment

Yes

Advanced Features / Sharpness Adjustment

Yes

Advanced Features / Active Histogram EQ

Yes

Advanced Features/Class

Class 3B

Advanced Features / Polarity

white-hot, black-hot, several pseudo colors

Advanced Features / Outline Mode

Yes

Advanced Features / Scaling Assist (PiP Mode)

(PiP mode) Yes

Advanced Features / Video Output

Yes (digital, USB and analogue)

Standard Parts / User and Operation Manual

Yes

Standard Accessories / 2x18650 Rechargeable Lithium Ion Battery

Yes

Standard Accessories / Quick Release Weapon Mount

Yes

Standard Accessories / Lens Cleaning Cloth

Yes

Standard Accessories / Charger

Yes

Standard Accessories / Lens Cap

Yes

Standard Accessories / Eyecup

Yes

Standard components / 0.8 m USB and BNC cable

Yes

Standard Accessories / Soft Carrying Bag

Yes
