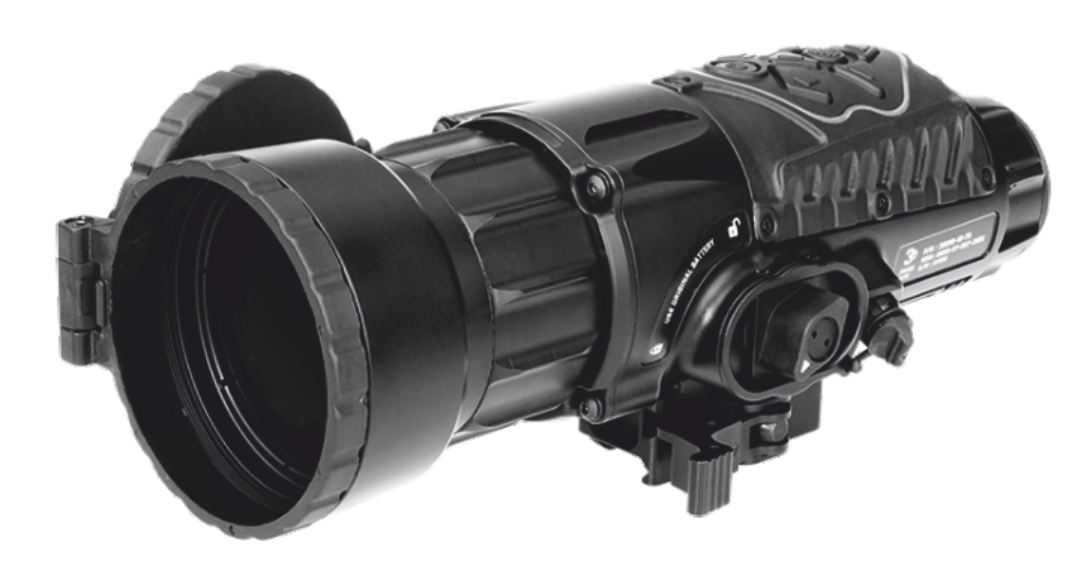

PARS 675 – clip-on thermal imaging sight for weapons

The PARS 675 is a best-in-class dual-purpose mountable thermal imaging riflescope that delivers world-leading image processing performance. It offers unrivaled optical resolution thanks to 17-micron LWIR sensor technology and a 640×480 thermal sensor. With advanced image processing, it can detect, recognize and diagnose targets at a superior level, allowing you to dominate the dark with exceptional visual quality. It has a durable, lightweight design to withstand extreme conditions with maximum performance so elite operators can count on it. Tested to MIL-STD-810 and featuring a waterproof design, the PARS 675 is durable and reliable in harsh environments thanks to its all-aluminum construction for maximum structural rigidity.

PARS 675 provides the most efficient and convenient user experience thanks to its easy-to-use interface. It contains many advanced features such as wireless video transmission to various platforms, wireless remote control, picture-in-picture (PiP) mode, internal video and image recording.

With a revolutionary software architecture developed by a team of engineers; it can be easily integrated into various types of weapons and provides high shooting efficiency thanks to excellent compatibility with the optical axis.

PARS 675 can be quickly installed on any MIL-STD-1913 rail interface

General Data/Frame Rate

60 Hz

General data / Display type

Color OLED

General data / Distance between eyes

General data / Electronic zoom

2x, 3x, 4x, 8x (PiP mode)

General data / Start time

<5 sec.

General data / Calibration verification

Automatic, semi-automatic, manual

Optical Data/Lens (MF)

75 mm

Optical Data/Optical Zoom

1ks

Optical data / Field of view (HxV)

8.3° x 6.6°

Optical data / Min. focal length

9m

Optical data/DRI

People Detection – 2200m / 2405 yards Vehicle Detection – 6750m / 7381 yards

Sensor data/Sensor technology

Microbolometer without cooling

Sensor Data/Sensor Resolution

640 x 480 pixels

Sensor data / sensor sensitivity

< 40 mK @f/1.0

Sensor Data/Sensor Interval

17 µm

Sensor Data/Spectral Range

LWIR; from 7.5 µm to 13.5 µm

Advanced Features / Built-in WI-FI

Yes (wireless video streaming from AppStore, Google Play, Windows)

Advanced Features / Built-in Bluetooth

Yes

Advanced Features / Motion Detection

Yes

Advanced Features / Video Recording

Yes (Format: MP4. Capacity: 180+ minutes)

Advanced Features / Image Capture

Yes (Format: JPEG. Capacity: 10000+ photos)

Advanced Features / Eye Comfort Mode

Yes

Advanced Features / Dual Axis Angle Indicator

Yes

Advanced Features / Stadiametric Rangefinder

Yes

Advanced Features / Continuous E-Zoom

+0.05x (1.00, 1.05, 1.10…)

Advanced Features / Grid

Multiple coordinate grid

Advanced Features / Grid Color

Multiple Grid Colors, Auto POL, AutoBG

Advanced Features / Grid Brightness Adjustment

Yes

Advanced Features / FP Mesh

FFP, SFP

Advanced Features / Stages on the Reticle

Yes

Advanced Features / Reticle Reset

Manual, automatic

Advanced Features / User Profiles

Up to 10 profiles

Advanced Features / Brightness Adjustment

Yes

Advanced Features / Contrast Adjustment

Yes

Advanced Features / Sharpness Adjustment

Yes

Advanced Features / Active Histogram EQ

Yes

Advanced Features / Polarity

white-hot, black-hot, several pseudo colors

Advanced Features / Outline Mode

Yes

Advanced Features / Scaling Assist (PiP Mode)

Yes

Advanced Features / Video Output

Yes (digital, USB and analogue)

Physical data / Weight

839 g (29.5 oz) (without battery) 1030 g (36.3 oz) (with accessories)

Physical data / Dimensions (WxLxD)

90×23 9×96 mm (3.54×9.40×3.77 in)

Physical Data / Optical Axis Distance(A)

40.90 mm (1.61 in)

Physical data / Housing material

aluminum with plastic parts

Physical data / Color

black or FDE

Physical data / Type of weapon mount

Quick release mount

Physical Data / Quick Release Mount

MIL-STD 1913, STANAG 4694

Electronic Data/Battery

2×18650 Rechargeable Li-ion

Electronic data / Battery life

4+ hours 7+ hours (power saving mode)

Environmental Data/Operating Temperature Range

From -32°C to +49°C (from -26°F to +120°F)

Environmental Data/Storage Temperature Range

From -40°С to +71°С (from -40°F to +160°F)

Environmental Data/Dive

IP67

Environmental Data/Recoil Compatibility

5.56 mm NATO (0.223 cal) 7.62 mm NATO (0.308 cal) 8.59 mm (0.338 cal) 12.7 mm NATO (0.50 cal)

Standard Parts / User and Operation Manual

Yes

Standard Accessories / 2x18650 Rechargeable Lithium Ion Battery

Yes

Standard Accessories / Quick Release Weapon Mount

Yes

Standard Accessories / Lens Cleaning Cloth

Yes

Standard Accessories / Charger

Yes

Standard Accessories / Lens Cap

Yes

Standard Accessories / Interface Bellows

Yes

Standard components / O.8m USB & BNC cable

Yes

Standard Accessories / Soft Carrying Bag

Yes
